1.H/T : 1-1/8" & 1.5" internal routing Headset
2.Pinion Gearbox
3.UDH rear derailleur hanger
4.Internal Cable routing
5.Tire : 27.5" * 2.4 (Max)
6.International standed Disc brake
7.Disc rotor ø180 (Max)
8.Chain & Belt

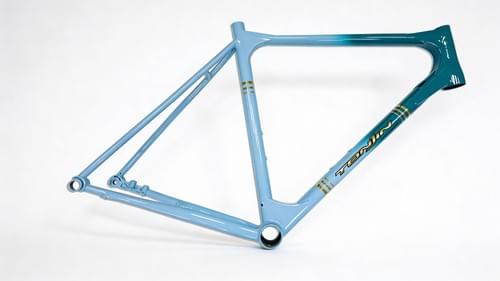

Material : CR-MO 4130
Fillet Brazed Handmade
H / T : Ø42* Ø52.1 (1-1/8" & 1.5"), making the fork more stable.
T / T : Ø34.9 Taper to Special ellipse at both ends
B / B : T47 (M47*P1.0), making pedaling more stable.
Seatpost : 27.2
Rear brake : Flat mount 160 &180
M12*P1.5 THROUGH AXLE dropout
Tire : 700C*45C
Full internal cable routing
Weight : 2.56KGS

Dropout Model:
293-0063B

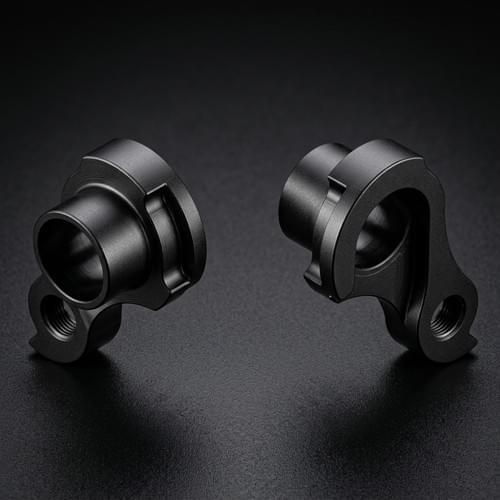

Hanger Model:
631-0039

Material : CR-MO 4130
Fillet Brazed Handmade

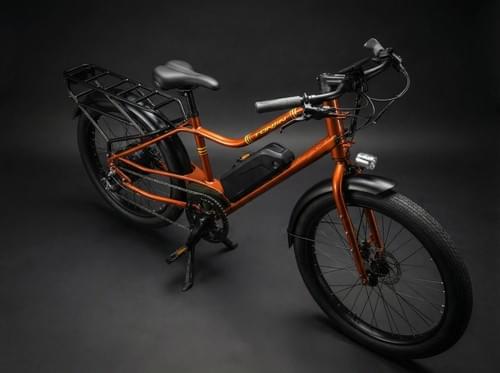

Motor：AVNU 750W-48V
Screen： 3.5” LCD
Battery：48V-3500mAh
Headlight：LED-100LUX , IPX5
Rear light：LED-1.8W , IPX4 , with direction light
Drivetrain：SHIMANO 8s
Wheels：Front 26x3.0 / Rear 24x3.0
Weight : 5.65KGS (FRAME)
