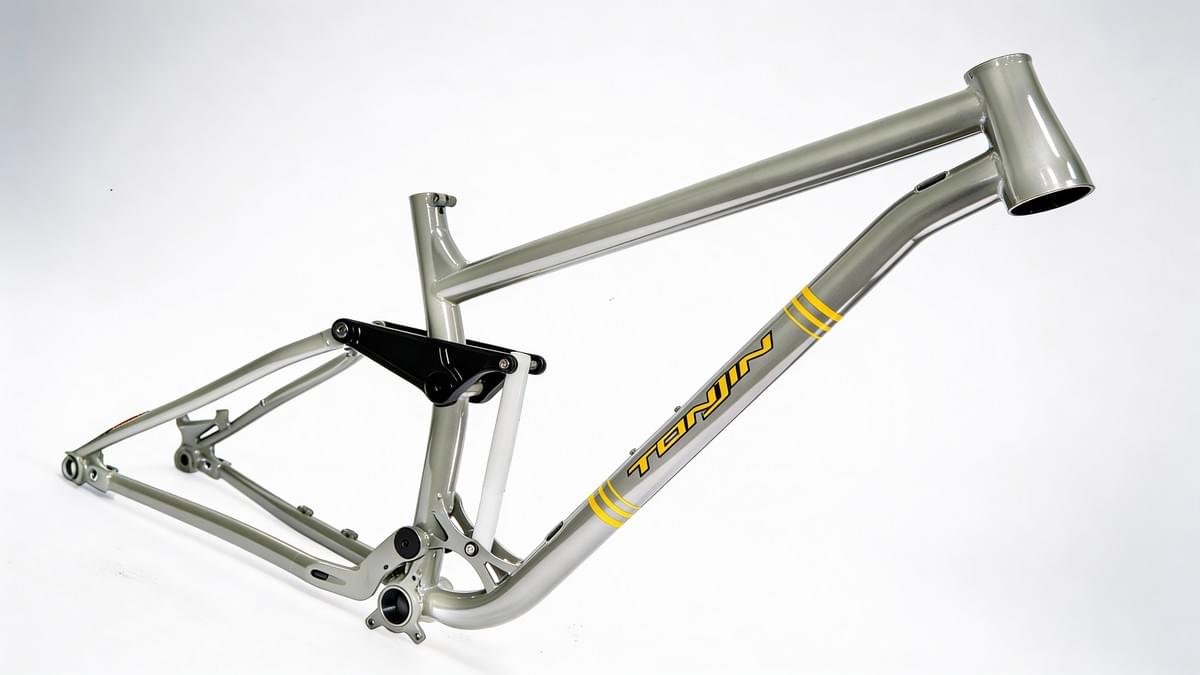

650XC

Material : CR-MO 4130
H / T : Ø44* Ø55.95 (1-1/8" & 1.5"), which makes the front fork more stable.
B / B : BSA 73 BC1.37*24T (English tooth)
Seat Post : Ø31.6
Rear Travel : 130 mm
Tire : 27.5
Post mount : rear disc 180
Adjustment interval : 4 bar linkage
Weight : 4.98KGS

1. Shape of the S-shaped down tube is smooth and streamlined, and restrains the torque generated when pedaling.
2. Front triangle is designed with internal wiring.
3. ISCG design on the right side of the bottom bracket prevents jumping during riding and causes the chain to fall off.
4. Rear shifting cable adopts an internal routing design (inside the right lower fork tube)
5. The 4-bar linkage design (4 bar linkage) is adopted to relieve the compression of the shock absorber while riding.
6. Resulting force.
7. Rear shifting lug adopts the UDH lug to prevent jumping during riding, which may cause the shifting lug to break.
8. Material 4130 high-rigidity chrome-molybdenum alloy steel is used to enhance the rigidity of the frame.
